Phenakistoscope

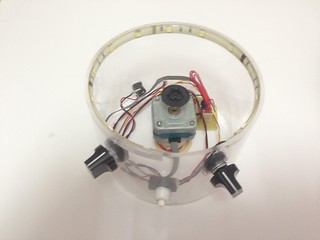

Inspired by this article, a DIY electronic remake of the Phenakistoscope, one of the first motion graphics device from the XIXth century. We used a recycled stepper motor from an old printer as the motion source, attaching a CD clip to it so that we could make the CDs rotate at a stable velocity. The CDs were completed with a sticked paper with classical and brand-new phenakistoscope patterns. By synchronizing the strobe frequency of a white led stripe with the motor rotation, we accomplish the image-in-motion effect on the eye. We used an Arduino nano for the overall control of the pots, the motor, the leds... and you can download the full code here: phenakistoscope.zip You can also check out the electronic scheme here:
